Quick Details

  • Type: Bluetooth module
  • Brand Name: hkshanhai
  • Place of Origin: Guangdong, China (Mainland)
  • Wireless Serial: RF Transceiver
  • Bluetooth module: hc-06
  • shiping dhl: 2-3days
  • Operating Temperature: 80
  • Dissipation Power: +3.3VDC
  • Application: Computer
  • Supply Voltage: +3.3VDC

Packaging & Delivery

Packaging Details: boxes
Delivery Detail: 3-4days

Specifications

RF Transceiver Module rs232 Bluetooth module
Wireless Serial Bluetooth RF Transceiver Module rs232
long range rf transceive

  RF Transceiver Module rs232  Bluetooth  module

Wireless Serial Bluetooth RF Transceiver Module rs232
long range rf transceiver module
bluetooth spp module

  • This small size Bluetooth TTL transceiver module allows your target device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer. It's easy to use and completely encapsulated.
  • TTL data transparent transfer between a host Bluetooth device.
  • Works with any USB Bluetooth adapters.
  • Default Baud Rate: 9600,8,1,n.
  • Coverage up to 30ft.
  • Built in antenna.
  • Power input: +3.3VDC.
  • Mini Size:27.2mm x 12.8mm x 2.5mm
  •



    HC-06

    Bluetooth UART RS232 serial Converter Module

    +

    Free Shipping







    Item Name

    Bluetooth UART RS232 serial converter Module

    Operating Frequency Band2.4GHz unlicensed ISM band
    Bluetooth SpecificationV2.0+EDR
    Output Power ClassClass 2
    Operating Voltage3.3V
    Host InterfaceUSB/UART
    Audio InterfaceNone
    Flash Memory Size8Mbit
    Dimensions27.2mm x 12.8mm x 2.5mm
    Net Weight9.6 g / 0.3 oz







     Key Features

    1. CSR Bluetooth Chip Solution
    2. Bluetooth Spec v2.0+EDR Compliant
    3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes
    4. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
    5. Increadible samll size with 3.3V input, and RoHS Compliant
    6. UART interface and with baudrate setup function
    7. Support for 8Mbit External Flash Onboard
    8. Support for 802.11Co-Existence

    Datesheet download: http://www.sendspace.com/file/yyu4vy

    Product Description

    The Bluetooth UART RS232 serial Converter Module can easily transfer the UART data through the wireless Bluetooth, without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system:

    * MCU, ARM or DSP systems.
    * SOC systems.
    * Personal Digital Assistants (PDAs)
    * Computer Accessories
    * Other systems your want to use under bluetooth functions.



    [Hardware]

    CSR solution, Bluetooth V2.0 protocol

    support AT commander

    support Master and Slave mode, modify by AT commander

    support 1200-115200 baudrate

    3.3V single supply

    Size: core module: 28mm*15mm*2.35mm, whole module:35.33mm*19.6mm*3.7mm

    current: 30mA MAX

    can be used with all MCU by UART port

    2 indicator lights





    [Software]

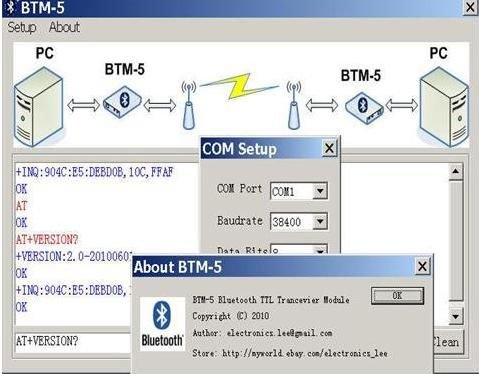

    user manual

    AT commander manual



    [External Board]

    We also provide an external board for the bluetooth to UART module for purchase.
