Quick Details

  • Place of Origin: France
  • Brand Name: WAVECOM
  • Model Number: Q24PL001
  • GPRS/GSM 850/900/1800/1900 MHz: GSM GPRS module
  • Approvals R&TTE, CE, GCF, FCC, PTCRB: CPU Processor Performance ARM946/DSP
  • AT commands - C language - Lua script: Operating Systems Linux
  • Drivers Linux windows: Device Dimensions 32x40x4mm
  • Operational Temperature -40°C to +85°C: SIM Interface 1.8V/3V

Packaging & Delivery

Packaging Details boxes
Delivery Time 3-4days

Specifications

wavecom m1206
1.Quad-band GSM/GPRS
2.Compact size
3.Automotive-grade
4.low cost





wavecom m1206









The AirPrime Q2686 embedded wireless module is a feature-rich, programmable quad-band GSM/GPRS module. Thanks to footprint compatibility with the rest of the Q Series, it can easily be evolved to EDGE, 3G and 3.5G when required. Equipped with on-board audio recording facilities and up to 44 GPIOs, the Q2686 is well suited to alarm and voice-response systems or to applications requiring a high number of connections.

Key features:

  • Quad-band GSM/GPRS communications on the 800, 900, 1800 and 1900MHz bands
  • Programmable ARM9 32-bit processor at 104MHz
  • Advanced audio features
  • Up to 44 GPIOs
  • Compact size, just 40 x 32.2 x 4mm
  • Automotive-grade
  • Footprint compatibility with entire Q Series of intelligent embedded modules
Interface ConnectorPower SupplyRF ConnectorAudioRF SensitivityLocation SolutionDimensionsTemperatureMemoryOperating SystemOPEN-AT OptionsOPEN-AT IDEDebug ToolsROHS Compliancecarrier-approvalsEMC Approvals
GSM / GPRS class 10
900 / 1800 MHz & 850 / 1900 MHz
ARM7 32-bit 52MHz w/ cache memory
(1) RTOS interrupt
(6/4/1) GPIO / GPO / GPI
(4) Analog Audio
(1) ADC
(1) SPI
(1) I2C
(2) RS232
(1) Led Driver
(1) Buzzer Driver (PWM)
5x5 - Keyboard
1.8V / 3.3 V SIM / RUIM

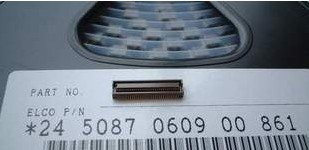

60-pin board-to-board connector
3.6 VDC (nom)
5uA/3mA/1.8A (min/idle/max)

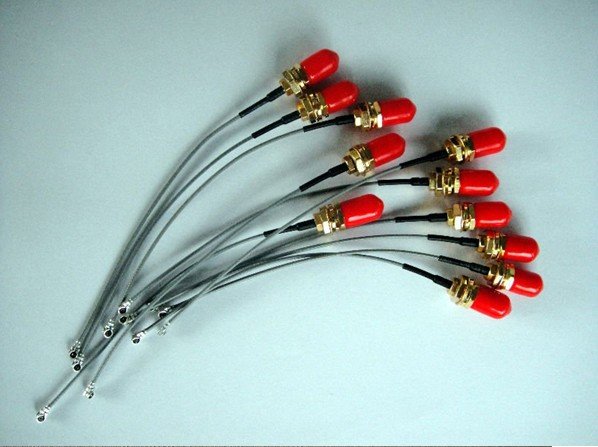

U.FL / IMP / Solder Pad
Codecs: FR/EFR/AMR, Quality: VDA2C (with AEC/NR)
'-110 dBm @ 900 MHz
external NEMA supported
58 x 32 x 3.9mm
Class A: -20°C to +55°C
Flash: 1.5MB / RAM 128kB
Open AT / 13 MIPS /
TCP/IP
Internet + Email (POP3/SMTP) + File Transfer (FTP)
Open SIM Access
Bluetooth
IBM MQ-TT
Orange SIM Access

Remote Task Env
Step-by-step execution
Break Points
Traces
Application Examples
Compliant with RoHS Directive (2002/95/EC)
See
Entire GSM products are approved to R&TTE, GCF-CC (900/1800 MHz), PTCRB (850/1900MHz), FCC (USA) - CE (EMC & Safety
