Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Shanhai
  • Model Number: SH-fiber-001
  • Support:: IEEE802.3ab
  • working with:: RJ-45 straight or cross ports
  • transmission range:: multimode fibre 550meter
  • singel fibre range: 25KM

Packaging & Delivery

Packaging Details 1 pcs/ boxes . 4 pcs/ cartons
Delivery Time 3-7 days

Specifications

fiber optic media converter rj45 sc connector
1.ISO 9000 quality
2.Warranty: 1 year
3.Model: 10/100
4.CE,FCC,RohsHS



fiber optic media converter rj45 sc connector

Product Description

10/100/1000M Gigabit Ethernet Single Fiber Media Converter


Standards:
IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100/1000Base-TX and 1000Base-FX

Parameters:
GE-XXX Models Fiber mode Max distance Wave length ST/SC
GE-1000S-B13(15) Bidi -SM 20 km 1310nm/1550nm SC
GE-1000S.40-B13(15) Bidi -SM 40km 1310nm/1550nm SC



 accessories
Details:
TP Port Rate:10/100/1000Mbps N-Way Auto-negotiation
Fiber Port Rate:1000Mbps
Duplex Mode:Full-Duplex / Half-Duple N-Way Auto-negotiation
UTP Ports:RJ-45 UTP
Fiber Ports:SC Single-mode
LED Indicators:TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX.
Power Requirement:1A@ +5VDC
Ambient Temperature:0~60
Humidity:5%~90%
Dimensions:95mm(W)×70mm(D)×26mm(H)
FCC Part 15 Class A & CE Mark.

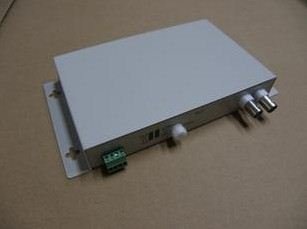

This is 10/100M Media Converter Working Picture:

Features

  • Stable switch power supply, guarantee the products long time working, convenience for changing power.
  • Support IEEE802.1Q and ISL and backbone connection
  • 1000Mbps operation speed
  • Support crossover cord and direct cord, self-adapt function



Technical parameter



ProtocolsIEEE802.3Z
InterfaceRJ-45(1000Base-TX) SC(1000Base-FX)
Indicator
POW:
It's on when power supply normally;
It's off when power off or power supply wrong.
FX/ACT:

Fiber Transmission Indicator. It's on when connection line is correct; It's flashing when transmitting data. It's off when connection wrong.

TP NK:
Raster Line Indicator. It's on when connection line is correct; It's flashing when transmitting data. It's off when connection wrong.
DUP:
It's on when working under full- duplex;
It's off when working under half-duplex.
1000M:
It's on when working under 1000M; It's off when working under other speed.
100M:
It's on when working under 100M; It's off when working under other speed.
10M:
It's on when working under 10M; It's off when working under other speed.
Power SupplyExternal Power Supply: AC220V DC5V/1A
Size: External94mmx70mmx25mm
EnvironmentOperating Temperature: -30°C ~ +50°C
Storage Temperature-40°C ~ +70°C
Humidity5%-90%(No condensing)
Weight0.2kg
