Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: hkshanhai
  • Model Number: tc35i /tc35
  • gsm modem: gsm Terminal
  • Dual-Band: 900/1800 MHz
  • tc35i/tc35: in the modem
  • good quality: low price
  • in the stock: shiping dhl ups TNT fedex

Packaging & Delivery

Packaging Details boxes
Delivery Time 3-4days

Good quality tc35i gsm modem for POS Terminal

pos  Terminal  modem tc35i

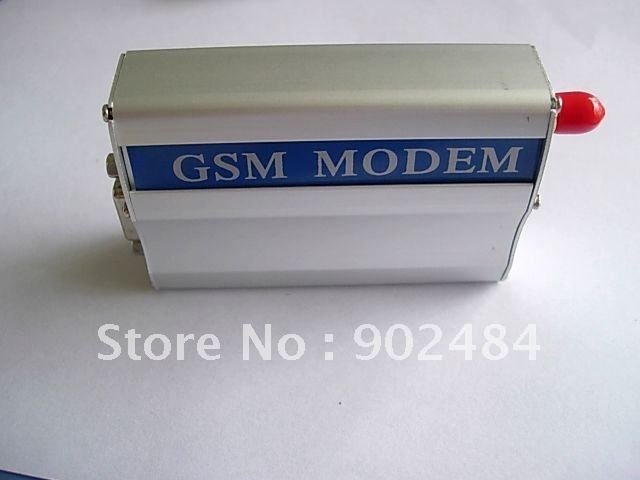

1.TC35I WIRELESS GSM/GPRS MODEM
2.Based on Siemens module TC35I
3.Dual-Band GSM 900/1800 MHz

General features:

Based on Siemens module TC35I

 Dual-Band GSM 900/1800 MHz

Compliant to GSM phase 2/2+

Output power:

 Class 4 (2 W) for EGSM900

Class 1 (1 W) for GSM1800

 Control via AT commands

SIM Application Toolkit

Supply voltage range: 7-30 V

Temperature range

Normal Operation: -20°C to +70°C

Restricted Operation: -25°C to +75°C

Switch off: +80°C

Storage: -40°C to +85°C

Size:65*74*33mm
Weight:95g

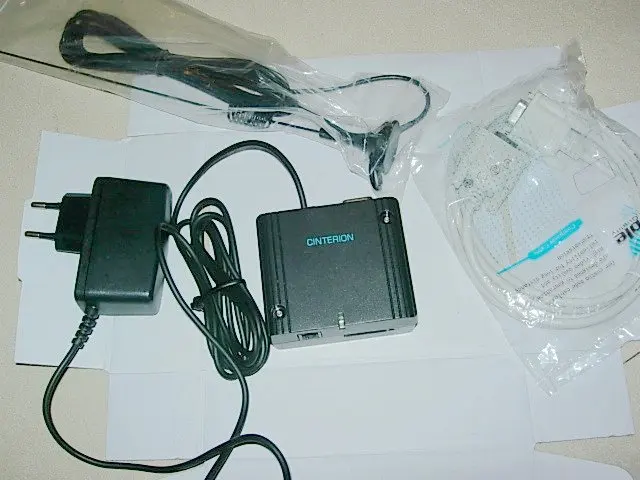

Accessories: AC/DC adaptor, RS232 cable, antenna with 3-meter cable and magnetic stand,

Specification for CSD data transmission:

Up to 14.4 kbit/s

V.110

Non-transparent mode

USSD support

Specification for SMS:

Point-to-point MO and MT

SMS cell broadcast

Text and PDU mode

Specification for fax:

Group 3, class 1, 2

Specification for voice:

Triple-rate codec for HR, FR and EFR

Basic hands-free operation

Echo cancellation

Noise reduction

Interfaces:

Antenna connector FME (male)

Plug-in power supply

Handset audio interface

Mini-SIM card reader

V.24/V.28 interface on the 9-terminal

Sub-D socket

Operating status LED

TC35i GSM 900/1800MHz Module



Specifications:

  • Dual-Band EGSM900 and GSMM1800
  • Compliant to GSM phase 2/2+
  • Output power:
    - Class 4 (2 W) for EGSM900
    - Class 1 (1 W) for GSM1800
  • Control via AT commands
  • SIM application toolkit
  • Multiplex serial interface
  • Supply voltage range 3.3 ... 4.8 V
  • Power save mode
  • Power consumption:
    - Power down 50 μA
    - Sleep mode (registered DRX = 6) 3.0 mA
    - Speech mode (average) 300 mA
    - GPRSclass 10 (average) 590 mA
  • Ambient temperature: -20 °C ... +55 °C
  • Automatic switch-off at - 25 °C and + 70 °C
  • Fax:Group 3, class 1, 2
  • data transfer:GPRS class 10 (21.4 kbps uplink/85.6 kbps downlink or 42.8 kbps uplink/64.2 kbps downlink)
  • Full PBCCH support
  • MS class B
  • Coding scheme CS 1, 2, 3, 4
  • CSD up to 14.4 kbps
  • USSD
  • Non transparent mode
  • V.110
  • SMS:Point-to-point MO and MT ,SMS cell broadcast,Text and PDU mode
  • Audio:Half rate (HR)
  • Full rate (FR)
  • Enhanced full rate (EFR)
  • Basic hands-free operation - Echo cancellation - Noise reduction

Additional features:

  • Phone book
  • Multiparty call
  • Call diverting
  • Real-time clock
  • Alarm management
  • Several ringing tones
  • DTMF

Interfaces:

  • 40-pin ZIF connector:
    - Power supply
    - SIM 3 V
    - Serial interface with ITU-T V.24 protocol
    - 2 analog audio interfaces
  • 50 Ω GSC RF connector





....
