  • Wireless Transceiver Module NRF24L01: with 2.4GHz Antenna for Arduino
  • nRF24L01+PA+LNA: 2.4G ISM band Two-way module
  • Rate of 250K: can reach 1100 meters
  • Rate of 2M: can reach 520 meters

Packaging & Delivery

Packaging Details boxes
Delivery Time Shipped in 2 days after payment

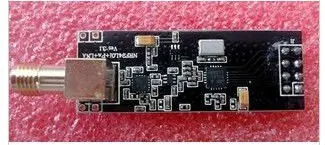

 SHANHAI  Wireless Transceiver Module NRF24L01+PA+LNA with 2.4GHz Antenna for Arduino



Product Description




Specifications

1.2.4G PA RF Module,nRF24L01+PA+LNA
2.NRF24L01+PA+LNA module is a 2.4G ISM band Two-way module



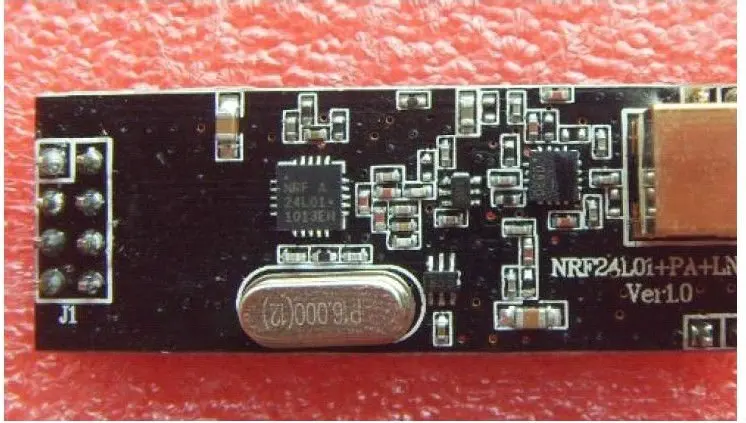

2.4G PA RF Module,nRF24L01+PA+LNA



NRF24L01+PA+LNA module is a 2.4G ISM band Two-way module, which provide by AND Technologies, basing on Nordic single chip nRF24L01.

Rate of 250K, can reach 1100 meters distance in condition of opening sky.

Rate of 1M, can reach 750 meters distance in condition of opening sky

Rate of 2M, can reach 520 meters distance in condition of opening sky



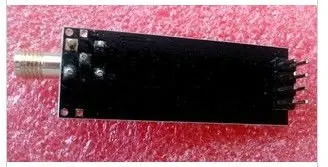

3) The pin assignment:

         GND VCC         CE  CSN

         SCK MOSI        MISO IRQ

Pin

Name

Direction

Description

1

GND



Ground

2

VCC



Power input, 1.9~3.6V

3

CE

I

Mode selection, TX or RX

4

CSN

I

SPI CS

5

SCK

I

SPI Clock

6

MOSI

I

SPI output

7

MISO

O

SPI input

8

IRQ

O

Interrupt output



4) Electrical parameters:



parameters

Value

Unit

Voltage

3~3.6V(3.3V recommendation)

v

MAX output power

+20

dBm

Transmitting mode operating current

115

mA

Receiving mode operating current

45

mA

Turn off mode current

4.2

uA

Operating temperature

-20~70

°C

Receiver sensitivity 2Mbps mode

-92

dBm

Receiver sensitivity 1Mbps mode

-95

dBm

Receiver sensitivity 250kbps mode

-104

dBm

PA gain

20

dB

LNA gain

10

dB

LNA Noise figure

2.6

dB

Antenna Gain

2

dBI

Rate of 2M

520

M

Rate of 1MB

750

M

Rate of 250KB

>1000

M




SHANHAI  Wireless Transceiver Module NRF24L01+PA+LNA with 2.4GHz Antenna for Arduino



1) Dimension:

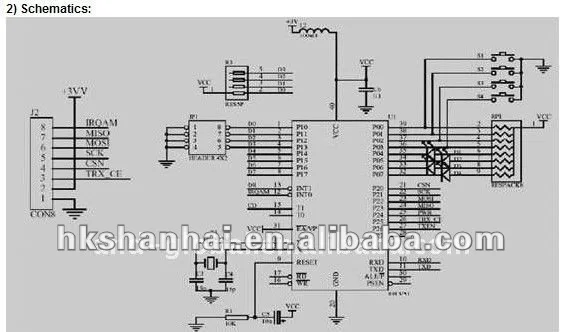

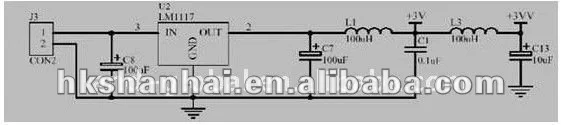

2) Schematics:









SHANHAI  Wireless Transceiver Module NRF24L01+PA+LNA with 2.4GHz Antenna for Arduino
