Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Ericsson
  • Model Number: Ericsson F5521GW
  • Band: Ericsson
  • Function: Embedded GPS
  • Frequency Band(WCDMA/HSPA)): 2100/1900/900/850MHz
  • Speeds(HSPA Data speed): D/L 21M bps U/L 5.76 Mbps
  • Form Factor: PCI Express Mini Card
  • connectivity: usb2.0
  • Delivery Time: Fast delivery
  • Certification: CE FCC RoHS
  • Warranty: 1 year
  • Service: Good after-sales service

Packaging & Delivery

Packaging Details standard package for wireless module Ericsson F5521GW
Delivery Time 3~5 business days

high performance communication equipment ericsson f5521gw 21Mbps wireless module with gps hspa mini pcie wifi 3g card








wireless module





Product Description







MOBILE BROADBAND MODULE



F5521gw for premium connectivity
Hspa evolution  Mobile Broadband ModuleF5521gw is our fastest and most advanced mobile broadband module,

uniquely designed with innovative features to provide a richer and cost-effective internet ex-perience for all.

The module provides enhanced function-ality such as wake-on wireless, reduced power consump-tion, faster start-up time,

high-performance GPS, Intel Anti-Theft 3.0, Windows 7, Linux and IPv6 support.

The module is also easy to customize for telecom operators and customers.

 All in all it’s a world module providing premium connectivity at an affordable cost



Embedded GPS



Our F5521gw module comes with en enhanced GPS solution that utilizes A-GPS for fast and accurate location as-sistance.

This GPS functionality enables service providers and IT departments to combine the wake-on-wireless feature and embedded network assisted GPS functionality to create a range of dif-ferentiating services,

including remote manageability, security updates, asset protection, tracking and geofencing.



Cater for all



The Ericsson Mobile Broadband Mod-ule is primarily intended for notebooks and netbooks, but can

also be integrat-ed in Fixed Wireless terminals and other devices that need high-speed wide area

connectivity. For a complete offering, Ericsson has designed a number of professional services to speed

up, and guarantee the success of your integra-tion project.







Functions







Features:



UMTS/3G operates in the following frequency ranges:

  • Uplink (Mobile Broadband Module to base-station)
    • 800: 830 - 840 MHz
    • 850: 824 - 849 MHz
    • 900: 880 - 915 MHz
    • 1900: 1850 - 1910 MHz
    • 2100: 1920 - 1980 MHz
  • Downlink (Base-station to Mobile Broadband Module)
    • 800: 875 - 885 MHz
    • 850: 869 - 894 MHz
    • 900: 925 - 960 MHz
    • 1900: 1930 - 1990 MHz
    • 2100: 2110 - 2170 MHz
  • GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz
    GSM Power Class:UMTS Power Class: Class 3 (24dBm)
    • MCS1-4 (GMSK): GSM850/900: Class 4/2W/33dBm GSM1800/1900: Class 1/1W/30dBm
    • MCS5-9 (8-PSK): GSM850/900: Class E2/0.5W/27dBm GSM1800/1900: Class E2/0.4W/26dBm

Performance specifications:

  • Peak power consumption
  • Supported Voltage Range 3.0V - 3.6V (3.3V +/- 9%)
  • Nominal Operating Voltage 3.3V
  • Average Standby Current / Power (Radio off) <10mW
  • Average Idle Current / Power (Attached to network) <10mW
  • Data Transfer Peak Current / Peak Power <2.8W
  • UMTS: 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) DL; 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) UL
  • GSM: 14.4 kbps UL/DL
  • GPRS: 85.6 kbps DL; 42.8 kbps UL
  • EDGE: 247.4 kbps DL; 123.70 kbps UL
  • 3G: GPRS/WCDMA/HSPA+; 21 Mbps DL; 5.76 Mbps UL

Physical specifications:

  • Approximate height: 4.25 mm (0.1675 in)
  • Approximate width: 30 mm (1.18 in)
  • Approximate depth: 50.95 mm (2.0 in)
  • Approximate weight: 0.012 kg (0.026 lb)



Related  Compatibility Model:



F3607GWF5321
H5321C5621



Photos Display of ericsson f5521gw:

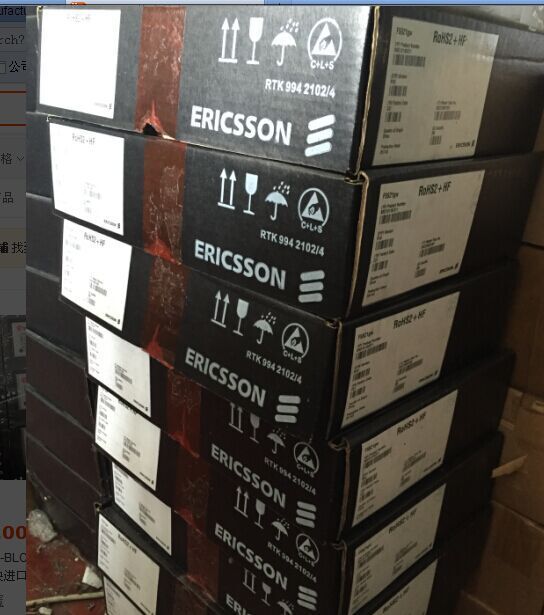

Packaging & Shipping



 Packaging:



Shipping:
