High quality 850/900/1800/1900MHz quad-band simcom sim900 gsm module

FOB Reference Price:Get Latest Price
$7.50 - $8.00 / Pieces | 5 Piece/Pieces simcom sim900 gsm module sample is available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
sim900
Brand Name:
simcom
Place of Origin:
Guangdong, China
Product Caption:
High quality 850/900/1800/1900MHz quad-band simcom sim900 gsm module
Weight:
3.4 g
Demension:
24mm x 24mm x 3mm
Supply voltage range:
3.2V to 4.8V
Normal operation:
-30℃ to +80℃
Normal Temperature Range:
-40°C to +85 °C
Frequency Band:
850/900/1800/1900MHz
GPRS data downlink transfer:
Max. 85.6 kbps
CSD:
up to 14.4 kbps
Service:
Good after-sales service
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week simcom sim900 gsm module is in stock now
Packaging & Delivery
Packaging Details
standard package with simcom sim900 gsm module
Port
Shenzhen Guangdong
Lead Time :
3 to 5 business days after payment

High quality 850/900/1800/1900MHz quad-band simcom sim900 gsm module

simcom sim900 gsm module



Product Description





     SIMCom presents an ultra compact and reliable wireless module-SIM900. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating ARM926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.

     Featuring an industry-standard interface, the SIM900 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice,SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x3 mm, SIM900 can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.











Functions





What is Features of our     High quality 850/900/1800/1900MHz quad-band simcom sim900 gsm module ?





General features
•Quad-Band 850/ 900/ 1800/ 1900 MHz
•GPRS multi-slot class 10/8
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @850/ 900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
•SAIC (Single Antenna Interference Cancellation)support
•Dimensions: 24* 24 * 3 mm
•Weight: 3.4g
•Control via AT commands (GSM 07.07 ,07.05 andSIMCOM enhanced AT Commands)
•SIM application toolkit
•Supply voltage range : 3.2 ... 4.8V
•Low power consumption: 1.0mA(sleep mode&BS-PAMFRMS=9 )
•Operation temperature: -40°C to +85 °C

Specifications for Fax
•Group 3, class 1

Specifications for GPRS Data
•GPRS class 10: max. 85.6 kbps (downlink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack

Specifications for CSD Data
•USSD
•Non transparent mode

Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP

Special firmware
•Embedded AT
•Java (cooperate with Iasolution)
•FOTA
•MMS

Specifications for Voice
•Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•AMR
- Half rate (HR)
- Full rate (FR)
•Hands-free operation
(Echo suppression)

Interfaces
•Interface to external SIM 3V/ 1.8V
•Analog audio interface
•RTC backup
•SPI interface (option)
•Serial interface
•Antenna pad
•I2C
•GPIO
•PWM
•ADC

Compatibility
•AT cellular command interface

Certifications:


•CE
•FCC
•GCF
•PTCRB
•IC
•ICASA
•ROHS
•REACH
•NCC
•Anatel
•A-TICK
•ATEX

Carrier Approvals:


•Rogers
•Oranges
•AT&T
•Vodafone
•Deuts Telecom
•Telia Sonera
•TIM
•GMA




Related Accessories:

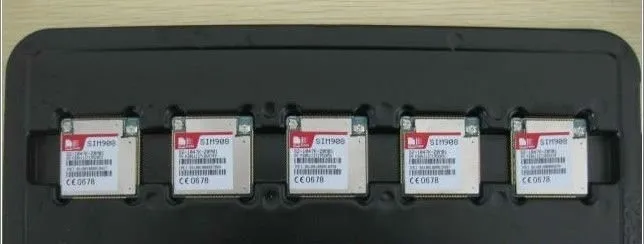

Product Photos





Product Showcase



Packaging & Shipping







Shipping:


What is application of our     High quality 850/900/1800/1900MHz quad-band simcom sim900 gsm module ?



*Auto water managermant

*Auto home alarm system

*whether report system

*Gas system

*Computer terminal equipment
