Quick Details

  • Place of Origin: France
  • Brand Name: motorola
  • Model Number: G24
  • Product Item: Latest technology competitive price gsm/gprs/edge motorola g24 module
  • Dimensions: 24.4 x 45.2 x 6.0mm
  • Power supply voltage: 3.3-4.2V
  • Fully Type Approved CE/R&TTE/GCF: emergency services
  • Application:healthcare: Industrial systems
  • Information display: Metering & Monitoring
  • Weight: 10.1g
  • Traffic control: Vending&Retail
  • Application :: emergency services
  • Service: After-sales service

Packaging & Delivery

Packaging Details standard package with motorola g24 module
Delivery Time 3~5 work days

Latest technology competitive price gsm/gprs/edge motorola g24 module



Product Description



1 Introduction

1.1 Overview

Create, innovate, go wild. Motorola wireless modules give you the access you need to develop your applications.

The  G24-JAVA wireless module serves as a powerful stand alone controller, supporting a variety of M2M applications, and providing developers control over G24 resources such as CPU, memory and I/O's. This advanced platform simplifies the application development and design process, resulting in significant cost savings and faster time to market. Its extensive feature set includes messaging, secure internet connections and IBM's MQTT M2M protocol.



  G24 module high-speed, quad-band GSM module enables seamless connectivity for today’s fastest-growing M2M applications. The G24, a single engine capable of multiple software configurations, including JAVA, is designed for flexibility to meet the specific needs of its customers around the globe.

The G24, the wireless pioneer in both the M2M and the automotive industries, brings to market cutting-edge technologies and rugged hardware. These meet in the design of a cost-effective, easily integrated mobility engine. G24 module establishes true partnerships with customers to deliver reliable, customized products and best-in-class support. Our service approach ensures G24 module customers the ability establishing the foundation for increased productivity and efficiency, while conforming to the strictest industry standards.




Functions





Motorola G24 module basic parameter
Device type: GSM The module
Network Type: GSM / GPRS / EDGE
Function Description: Motorola G24 is a high-speed GSM / GPRS / EDGE module, support for quad-band 850/900/1800 / 1900MHZ, with advanced technology, stable performance to achieve a seamless, high-speed M2M connectivity, built-TCP / IP protocol line , support JAVA, accelerate and facilitate the customer's development process

Hardware configuration: supports USB2.0 full speed / UART, automatic BR from 300-115kbps, two UARTs for AT commands and data
Power supply voltage: 3.3-4.2V
Dimensions: 24.4 x 45.2 x 6.0mm
Weight: 10.1g

Performance
Operating Voltage: 3.3 to 4.2 V
Current Consumption: <2.5mA @DRX9 (sleep mode)
Tx Power: 850/900 MHz - class 4 (2 Watt) : 1800/1900 MHz - Class 1 (1 Watt)
Typ. RX Sensitivity: 106dBm (4dB margin on top of spec)

Interfaces
Connectors: Single 70 pin board-to-board : RF MMCX
SIM Card: 3.0V : STK 3.1
Connectivity: USB 2.0 full speed : UART     -  BR from 300 bps to 115 Kbps     -  Auto BR : Two physical UARTs for AT commands & Data

JAVA Features - Model Dependant
  • JSR 185 JTW1 compliant :   -  JSR 139 CLDC 1.1   -  JSR 118 MIDP 2.0   -  JSR 135 MMAP 1.1   -  JSR 120 WMA 1.1
  • JSR 75 compliant :   -  File connection API   -  PIM API
  • Proprietary API   -  16 GPIO's   -  3x A2D converters   -  3 simultaneous serial connections (2 UART & USB)   -  CSD/Voice call   -  General operations and settings
  • OTA Midlet download
  • Midlet auto start
  • More than 2 MB of Java application memory
  • More than 512 KB RAM
  • On device debugging
Data Features
GPRS
  • Multi slot class 10 (4 Down; 2 Up; 5 Total)
  • Max BR 85.6 Kbps
  • Class B GSM 07.10 multiplexing protocol
  • Coding scheme CS1-CS4
  • Embedded TCP/IP and UDP/IP protocol stack
Edge (model dependant)
  • Multi slot class 10 (4 Down; 2 Up; 5 Total)
  • Max BR Downlink 236.8 Kbps (over RS232)
  • Coding scheme MCS1-MCS9
CSD
  • Max BR 14.4 Kbps
SMS
  • MO / MT Text and PDU modes
  • Cell broadcast
FAX Class 1

Voice Features
  • Telephony
  • Digital audio
  • Differential analog audio lines
  • Vocoders EFR/HR/FR/AMR
  • DTMF support
  • Audio control: echo cancellation; noise suppression; side tone; gain control
GSM Supplementary Service
  • USSD phrase II
  • Call forwarding
  • Call hold; waiting; multiparty
  • Call diverting
  • Missed call indicator
  • AOC
  • Call barring
Character Set
  • UTF8
  • UCS2
  • GSM
  • IRA
  • HEX
Control / Status Indications
  • 8 GPIOs
  •  3x A2D general purpose converters
  • GSM/GPRS coverage
  • Wake up in/out
  • Antenna presence detect
  • Temperature sensor
  • Voltage sensor
AT Command Set
  • GSM 07.05
  • GSM 07.07
  • GSM 07.10
  • Motorola proprietary AT commands
Accessories
  • Firmware data loader over serial connection
  • Data logger
  • Developer Kit
Regulatory and Approvals
  • FTA, FCC, DOC, PTCRB
  • R&TEE
  • GCF
  • EMC
  • QS9000 manufacturing
  • RoHS

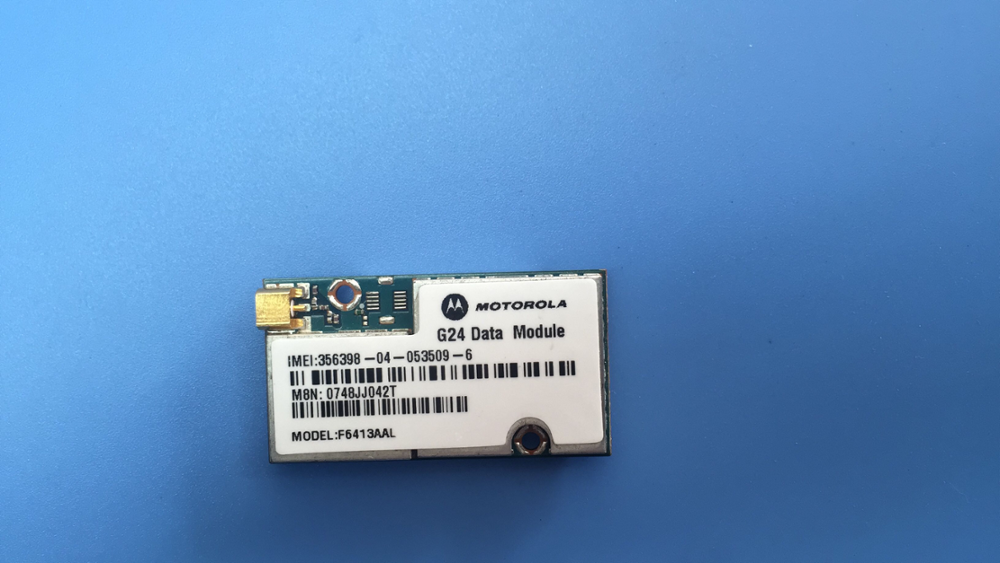

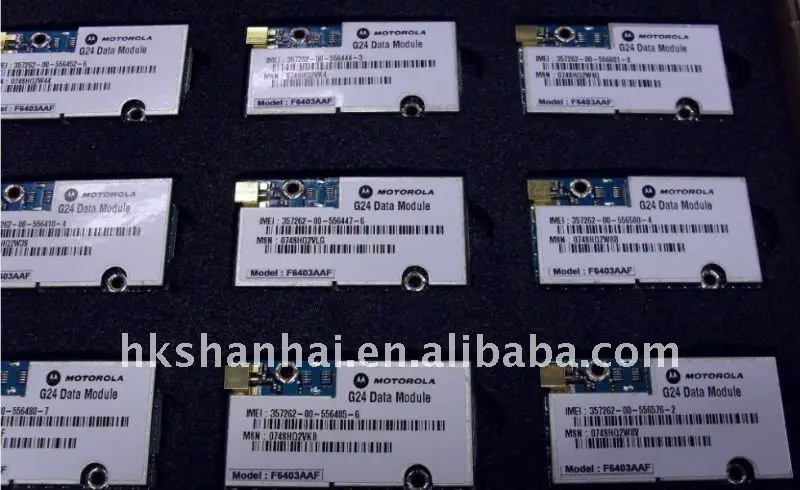

g24 module Pictures:


Packaging & Shipping

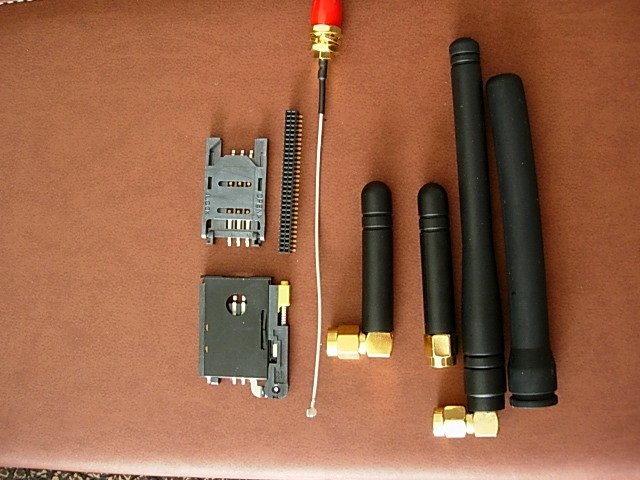

RF cable:

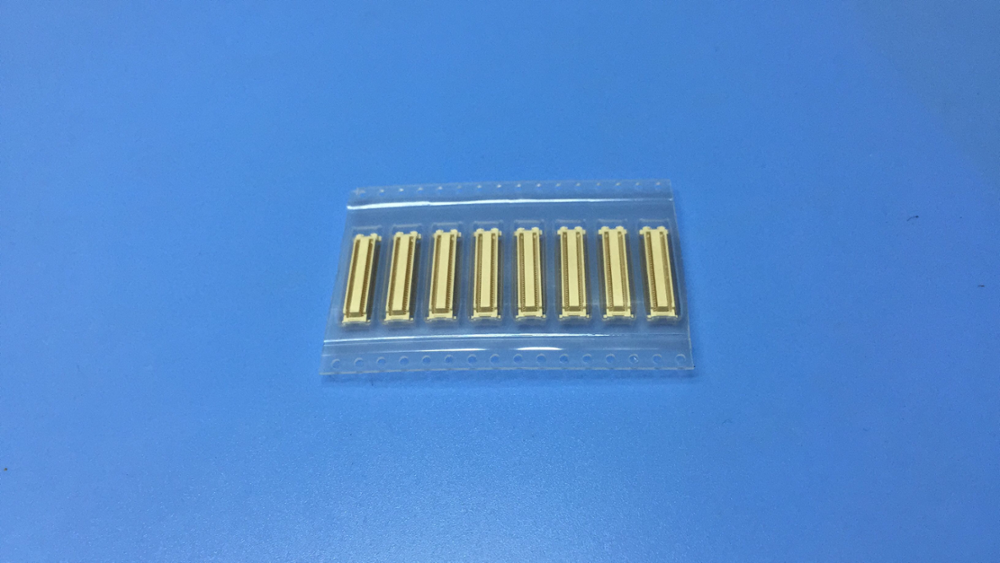

board to cable.
