Hot Penta-band huawei me936 mini pci express 4g lte module band 20

FOB Reference Price:Get Latest Price
US $40-45 / Pieces | 1 Piece/Pieces According to your request (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HUAWEI
Model Number:
ME936
Product name:
Hot Penta-band huawei me936 mini pci express 4g lte module band 20
Weight:
<6g
Dimensions:
42 mm x 30 mm x 2.3 mm
Humidity:
5% - 95%
Supply voltage range:
3.135V~4.4V (3.3 V recommended)
WCDMA PS:
UL (384 kbps)/ DL (384 kbps)
GPRS/EDGE:
Multi-slot Class 12
Extended operation:
-20°C to +70°C
Warranty:
1 year
Service:
Good after-sales service
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month huawei me936 4g module is in stocked
Packaging & Delivery
Packaging Details
standard box for huawei me936 4g module
Port
Shenzhen Guangdong
Lead Time :
within 7 working days

Hot Penta-band huawei me936 mini pci express 4g lte module band 20

4g lte module huawei me936

 Brief Description:



* Form Factor: M.2 LTE Module

* LTE(FDD) B1/B2/B3/B4/B5/B7/B8/B13/B17/B20

* Penta-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B4/B5/B8/B9

* LTE FDD: UL(50Mbps)/DL (100Mbps) @ Bandwidth 20M (CAT3)

* DC-HSPA+: UL(11Mbps)/DL (42Mbps)





Product Description



HUAWEI ME936 is a 4G LTE module with NGFF interface, supporting LTE (FDD) B1/B2/B3/B4/B5/B7/B8/B13/B17/B20, Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA for North America and Europe network coverage, low power consumption, Global Navigation Satellite System(GNSS), and North America and Europe carrier certifications, enabling easier and more flexible design and integration into end devices. In addition, the ME936 supports NGFF features to optimize performance, power consumption, and usability.


HUAWEI ME936 is the ideal choice for Ultrabook, notebook, tablet etc.







Functions




What is the specifications of       Hot Penta-band huawei me936 mini pci express 4g lte module band 20 ?






Technical Speicifications:


Form Factor: M.2


Band

* LTE(FDD) B1/B2/B3/B4/B5/B7/B8/B13/B17/B20

* Penta-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B4/B5/B8/B9

* Quad-band EDGE/GPRS/GSM 1900/1800/900/850 MHz




Data Transfer Rate

* LTE FDD: UL(50Mbps)/DL (100Mbps) @ Bandwidth 20M (CAT3)

* DC-HSPA+: UL(11Mbps)/DL (42Mbps)

* WCDMA PS: UL (384 kbps)/ DL (384 kbps)



Interface


* Antenna interfaces x 2

* M.2 Socket 2

* USB 2.0 interface high speed

* Power supply

* UICC interface




Temp Range


* Normal operation: -10°C to +55°C

* Extended operation: -20°C to +70°C

* Storage: -40°C to +85°C



GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass

OS: Windows 7/8/Blue / Android 4.0 or above




What's the special feature of      Hot Penta-band huawei me936 mini pci express 4g lte module band 20 ?





Special Features

* SIM Hotswap

* IPV6

* BodySAR

* Ultrabook feature support(ACT, WiFi Offload , DPTF)

* USB LPM (Link Power Management)

* Tunable Antenna

* Supporting MO and MT

* Supporting formats of PDU

* Point-to-point and cell broadcast



Approvals

* FCC

* GCF

* PTCRB

* RoHS/ Halogen free

* Operator TA: AT&T(Plan), Vodafone(Plan)

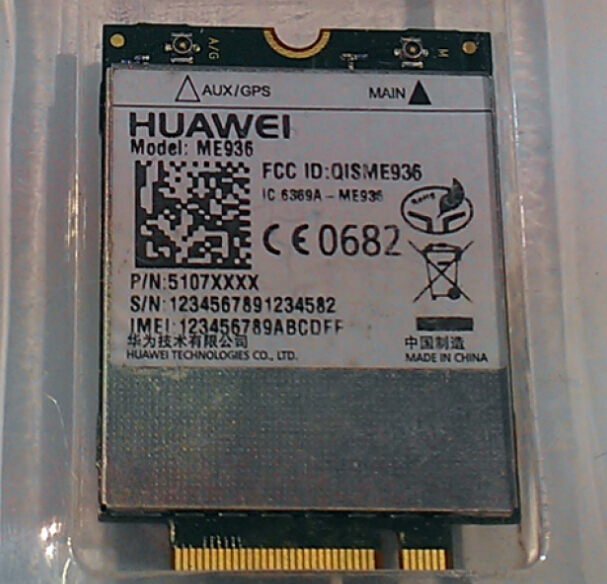

how the product pictures of       Hot Penta-band huawei me936 mini pci express 4g lte module band 20 ?


Hot Penta-band huawei me936 mini pci express 4g lte module band 20
Hot Penta-band huawei me936 mini pci express 4g lte module band 20
Hot Penta-band huawei me936 mini pci express 4g lte module band 20
Hot Penta-band huawei me936 mini pci express 4g lte module band 20

Hot Penta-band huawei me936 mini pci express 4g lte module band 20
