Quick Details

  • D/C: SMT
  • Package: other
  • Model Number: SIMCOM800F
  • Type: module
  • Brand Name: SIMCOM
  • Place of Origin: Guangdong, China (Mainland)
  • Dimensions:: : 24*24*3mm
  • Certifications:: ROHS/REACH/ GCF/CE
  • Quad-band: 850/900/1800/1900MHz
  • Supply voltage range: : 3.4 ~ 4.4V
  • Operating Temperature:: : -40°C ~ +85 °C
  • GPRS class 12::: max. 85.6 kbps (downlink/uplink)

Packaging & Delivery

Packaging Details BOX
Delivery Time 1-3days
Product Description



SIM800F is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.
SIM800F supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3mm, it can smoothly fit into slim and compact demands of customer design.

General features

•Quad-Band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @850/900MHz)
–Class 1 (1 W @1800/1900MHz)
•Dimensions: 24*24*3mm
•Weight: 3.1g
•Control via AT commands
(3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃

Interfaces

68 SMT pins including
• Analog audio interface
• RTC backup
• USB interface
• Serial interface
• Interface to external SIM 3V/1.8V
• GPIO
• ADC
• PWM
• I2C
• GSM Antenna pad
• Bluetooth Antenna pad

Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD

Specifications for SMS via GSM/GPRS

•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode

Software features

•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•Bluetooth 3.0 (optional)

Specifications for voice

• Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
• AMR
–Half rate (HR)
–Full rate (FR)
• Hands-free operation (Echo suppression

Compatibility

• AT cellular command interface

Certifications

• ROHS/REACH/ GCF/CE

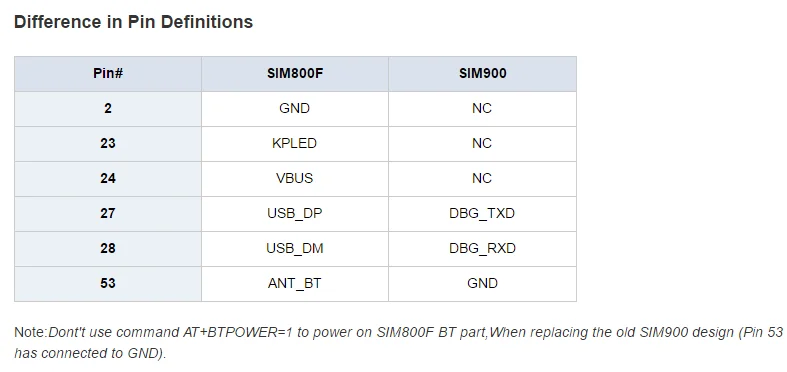

Product comparison






Difference in Functions

Functions
SIM800F
SIM900
Bluetooth
Support
Not Support
PCM/SPI interface
Support
Only Support SPI
Interrupt
Some GPIO support
All of  GPIO support
USB interface
Support
Not Support
Debug interface
USB
DEBUG_TXD/RXD
RF_SYNC
Support
Not Support

Difference in Electrical Characteristics

Electrical Characteristics
SIM800F
SIM900
VBAT supply range
3.4~4.4V
3.2~4.8V
PWRKEY power domain
VBAT
2V
VRTC supply range
1.2~3.0V
2~3.15V
VDD_EXT max load
50mA
10mA
KPLED
Support
Not Support
PWRKEY VIL
<0.7V
<0.42V
RESET valid pull down time
>105mS
>20uS
Digital interface VIH
2.1<VIH<3.1
2.4<VIH
Digital interface VIL
-0.3<VIL<0.7
VIL<0.4
Digital interface VOH
>2.4V
>2.7V
Digital interface VOL
<0.4V
<0.1V
