Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: hkshanhai
  • Model Number: SIM300 SIM340
  • Products name: Good quanlity SIMCOM wireless module GSM GPRS module SIM300 low price
  • 900/1800/1900 MHz: Tri-Band/Quad-Band
  • M2M applications: SMT type
  • voltage range: 3.4V...4.5V
  • Dimensions: 24*24*3mm
  • GSM GPRS module: wireless module

Packaging & Delivery

Packaging Details standard package
Delivery Time 2~3days





 Good quanlity SIMCOM wireless module GSM GPRS module SIM300 low price





Packaging & Shipping





The SIM300/340 is a Tri-Band/Quad-Band GSM/GPRS solution in a compact plug-in module.

The leading features of SIM300/340 make it ideal for applications such as WLL applications and handheld devices.

  - An embedded Powerful TCP/IP protocol stack

  - Based upon mature and field-proven platform, backed up by our support service, from definition to design and production



General features

  - Tri-Band GSM/GPRS 900/1800/1900 MHz or

    Quad-Band GSM/GPRS 850/900/1800/1900 MHz

  - GPRS multi-slot class 10/8

  - GPRS mobile station class B

  - Compliant to GSM phase 2/2+

     - Class 4 (2W @ 850/900MHz)

     - Class 1 (1W @ 1800/1900MHz)

  - Dimension: 40*33*2.9 mm

  - Weight: 8 g

  - Control via AT commands (GSM 07.07, 07.05 and SIMCom enhanced AT Commands)

  - SIM application toolkit

  - Supply voltage range 3.4V...4.5V

  - Low power consumption

  - Normal operation temperature: -20°C to +60°C

  - Restricted operation temperature: -30 °C to -20 °C and +60 °C to +80 °C

  - Storage temperature: -40°C to +85°C


Specifications for fax

  - Group 3, class 1


Specifications for data:

  - PBCCH support

  - GPRS class 10: max. 85.6 Kbps (downlink)

  - PPP-stack

  - Coding schemes CS 1, 2, 3, 4

  - CSD up to 14.4 kbps

  - USSD

  - Non transparent mode


Specifications for SMS via GSM

  - Point-to-point MO and MT

  - SMS cell broadcast

  - Text and PDU mode


Specifications for voice

  - Tricodec

     – Half rate (HR)

     – Full rate (FR)

     – Enhanced Full rate (EFR)

  - Hands-free operation (Echo suppression)


Interfaces

  - Interface to external SIM 3V/1.8V

  - Two analog audio interfaces

  - RTC backup

  - Serial interface and debug interface

  - LCD interface

  - Keypad interface

  - Antenna connector and antenna pad







Functions



  • Tri-Band GSM/GPRS 900/1800/1900MHz or Quad-Band GSM.GPRS 850/900/1800/1900MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
  •      Class 4 (2W @ 900MHz)
  •    sim300/340 gps/gprs module sim300/340/industrial module sim300/340/sim300/340 wireless gprs module  Class 1 (1W @ 1800/1900MHz)
  • Dimensions: 40mm*33mm*2.85mm
  • Weight: 8g
  • Control via AT commands (GSM 07.07, 07.05 and SIMCom enhanced AT Commands)
  • SIM application toolkit
  • Supply voltage range 3.4V - 4.5V
  • Low power consumption
  • Normal operation temperature:
  •      -30°C to +70°C
  • Restricted operation temperature:
  •      -35°C to +80°C
  • Storage temperature: -40°C to +80°C

Related Accessories:





Specifications for Data* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
Specifications for Voice* Tricodec
  - Half rate (HR)
  - Full rate (FR)
  - Enhanced Full rate (EFR)
* Hands-free operation
  (Echo suppression)
* AMR
  - Half rate (HR)
  - Full rate (FR)
Interfaces* 60 PIN Board-to-board connector
* Interface to external SIM 3V/ 1.8V
* Two analog audio interface
* RTC backup
* SPI interface
* Serial interface
* SIM Card
         - Option1: SIM holder
         - Option2: Embeded SIM
* Keypad
* GPIO
* PWM
* ADC
* Antenna connector
Compatibility* AT cellular command interface
Approvals(on going)* CE
* FCC
* ROHS
*
Good quanlity SIMCOM wireless module GSM GPRS module SIM300 low price

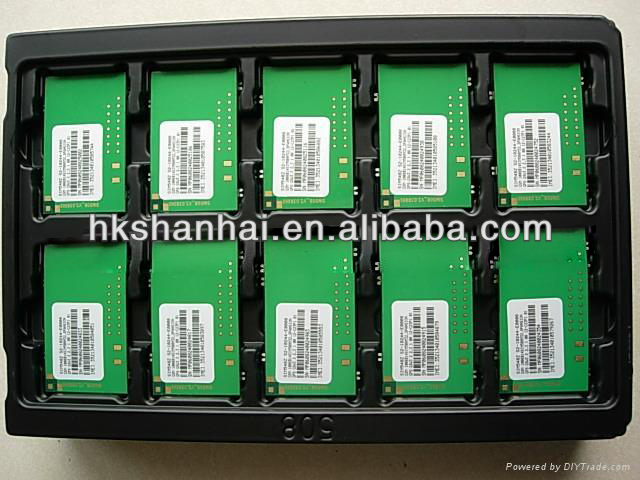

Product Photos





Good quanlity SIMCOM wireless module GSM GPRS module SIM300 low price

  • Auto water managermant
  • Auto home alarm system
  • whether report system
  • Gas system
FAQ





What is Our Advantages?

1.Rapid response on any inquiry.

2.Competitive price.

3.Professional inspection department to guarantee quality.

4. we supply 1 year warranty , and free technology support .
