pcie wifi module

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jorjin
Model Number:
WN-6608-00
Firmware:
OPEN-WRT,WR703N Compatible
Interface:
 Two Lan, One WAN,wifi, One U
ROM:
4M/8M
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
box
Port
HK
Lead Time :
2-3days

Specifications

pcie wifi module
Firmware: OPEN-WRT,WR703N Compatible
Interface: Two Lan, One WAN,wifi, One Usb, TTL
ROM: 4M/8M

pcie wifi module

Detailed Product Description





WIFI module WN-6608-00 pcie wifi module
1,Realtek IEEE 802.11b/g/n solution
2,SDIO Interface
3,Cheap price wifi module



 WN-6608-00 wifi camera module

1,Realtek IEEE 802.11b/g/n solution
2,32-pin WIFI module
3,SDIO Interface
4,Cheap price wifi module

WIFI module WN-6608-00:







1. Features:

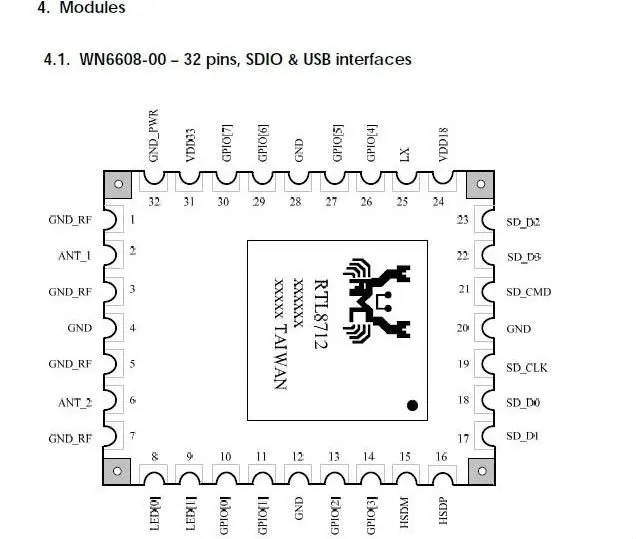

# 32-pin module with 16mm(L) x 14mm(W) x 2.35mm(Typ. H)(2.55mmMax.) dimension.
# Main chip RTL8712 highly integrates MAC, baseband, RF in a singlechip
# Operate at ISM frequency bands (2.4GHz)
# Support SDIO2.0 or USB2.0 host interface
# WN6608-00: SDIO Interface
# WN6608-10: USB Interface
# IEEE standards support: IEEE 802.11b, 802.11g, draft 802.11n
# Enterprise level security which can apply WPA2 certification
# 1 transmitter and 2 receivers allow data rates supporting up to 300Mbps downstream and 150 #Mbps upstream PHY rates.

# Full-featured software utility for easy configuration and management
# Power savings features and low power consumptions for mobile powered applications
# Support WMM QoS
# Support IEEE 802.11i encryption/decryption engine, including 64-bit/128-bit WEP, TKIP, and AES
# Supports Wi-Fi alliance WPA and WPA2 security
# Supports Wake-On-LAN (WOL) function and remote wake-up(Magic Packet and Microsoft® wake-up frame)
# High radio performance
# Ready for embedded OS such as Windows CE, Linux, and more

# Single 3.3V power supply
# Rohs compliance



2. Applications:
Typical applications such as printer, MFP, projector, wireless audio, wireless
data terminal, digital photo frame, digital video recorder, digital TV or any
other consumer electronic device or embedded system.
